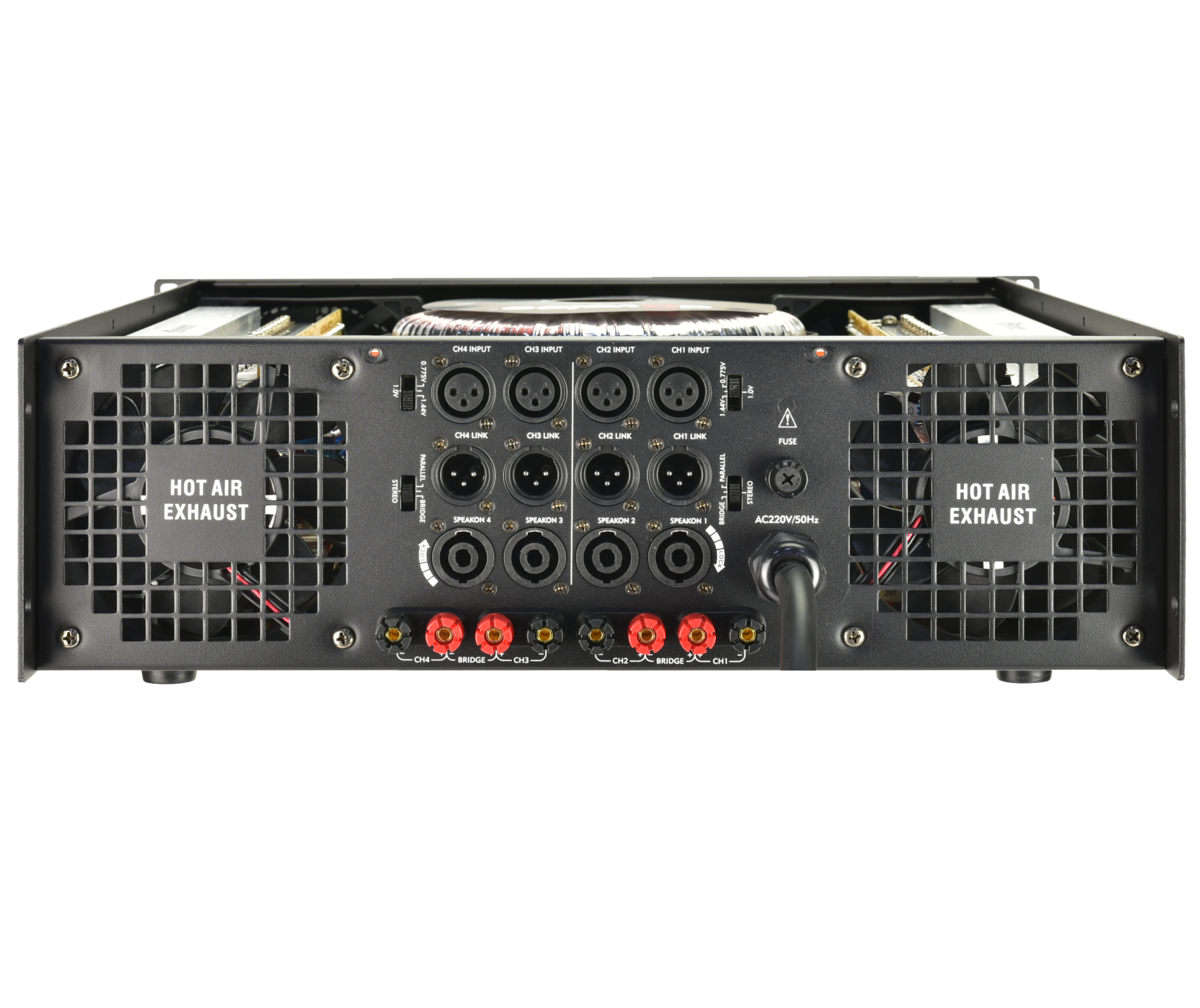

FPA-418

SPECIFICATIONS

Stereo 8Ω: 4x1800watt

Stereo 4Ω: 4x2600watt

BTL 8Ω: 2Ωx4800watt

Frequency Response: 5Hz-30KHz (±0.5dB)

THD+N: <0.05% 8Ω 1/3Po 1KHz

Input Sensitivity: 0.8V/1.6V

Input Impedance: 20KΩ (Balance) | 10kΩ (Unbalance)

Signal-to noise ratio: >98dB

Slew Ratio: 22V/u S

Damping Factor: >600

Crosstalk: >65dB@8Ω 1Khz

Protection: Overheat short circuit, DC, limit and softstar, Output

relay-zero, Current Switch, Intellctual Clip limiter

Mode Every Two Channels: Stereo/Parralel/Bridge

Cooling System: Two step speed fan

Circuit Type: Class-H

Height: 3U

Voltage: AC 220V 50-60Hz

In Connectors: XLR Input Channel with Out Link

Out Connection: Speakon Connector and binding post

Net Weight: 42.48kg

Gross Weight: 46.55kg

Product Size: 58*45.5*14cm

Packing Size: 65.5*58.5*20cm
